8057i

High speed printing and copying with 80 A4-pages per minute. When it comes to printing documents in high speed, this system will be a perfect partner. The systems offer optimised performance, which is evident from the rapid output of the first page. Due to the technical innovations in the fields of quality, productivity, reliability and security almost every requirement can be handled easiliy. The paper management offers high flexibility due to a paper capacity that can be expanded to 7,650 sheets from eight paper sources. Paper weights up to 300 g/m² and paper sizes up to A3+ are additional features that increase flexibility. Numerous options in finishing enable the user to prepare brochures or tri-folded letters. At the same time, integrated OCR text recognition guarantees significantly improved efficiency. Scans can be transformed into new, editable and searchable files that can be stored in a pre-defined folder at just the touch of a button. The dual scanner with ultrasonic sensor for multi-feed detection ensures additional effectiveness.

Find a Retailer

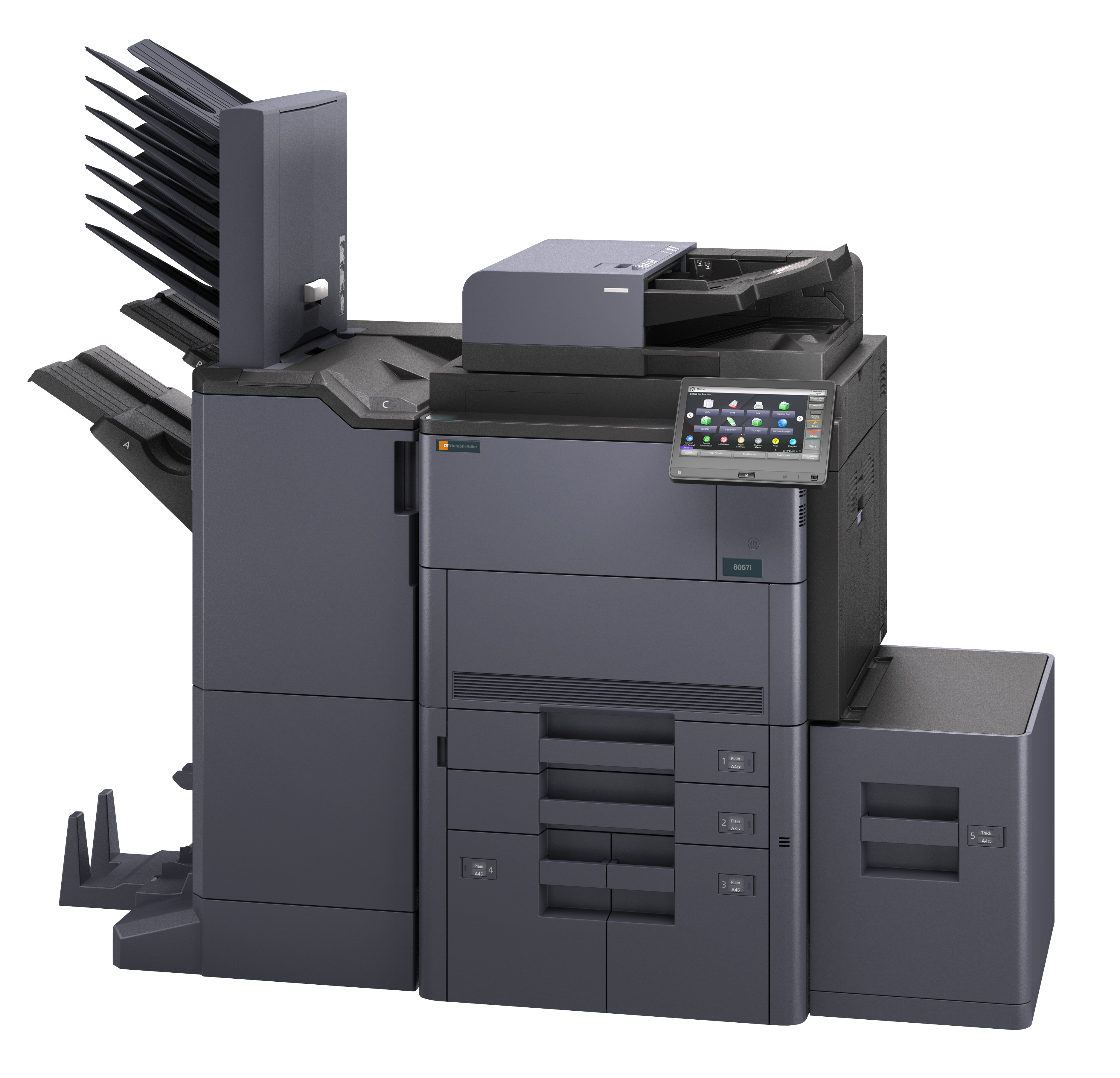

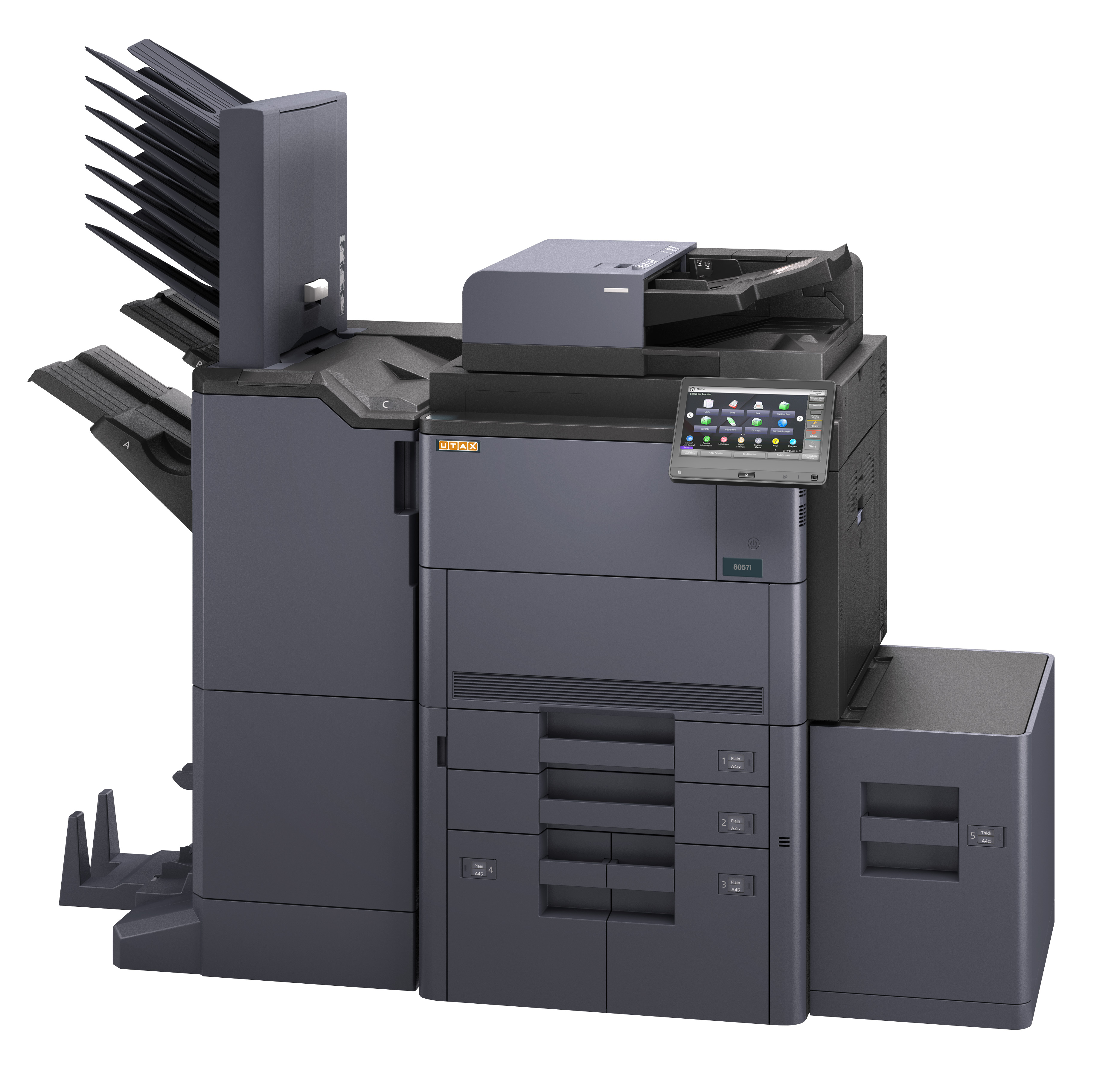

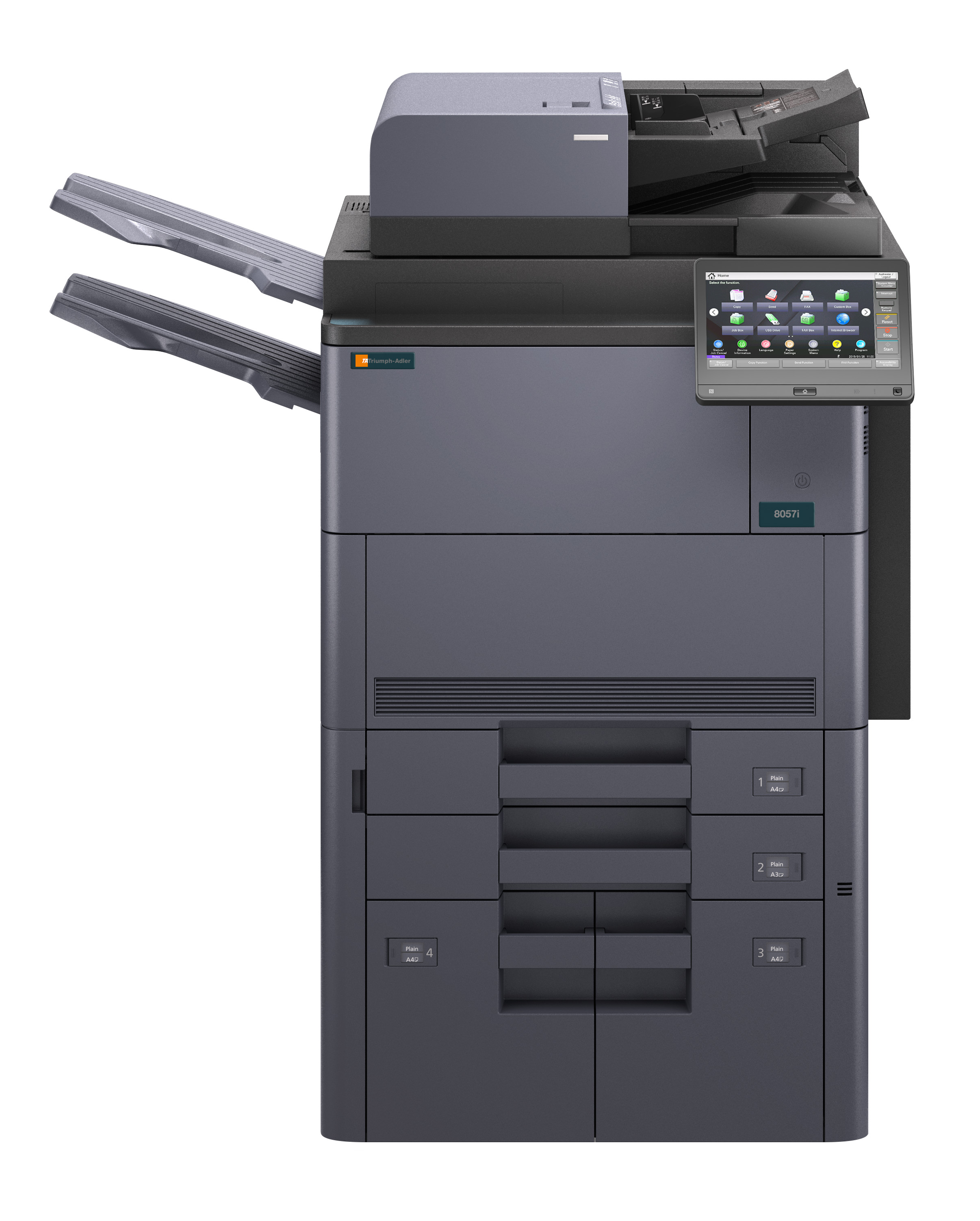

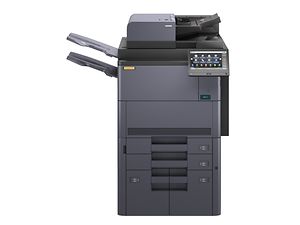

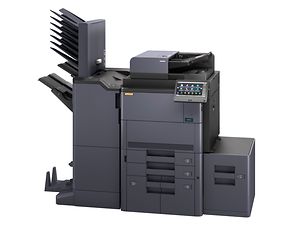

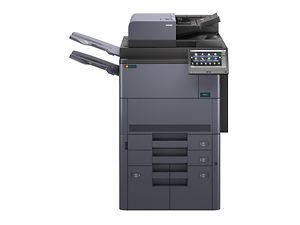

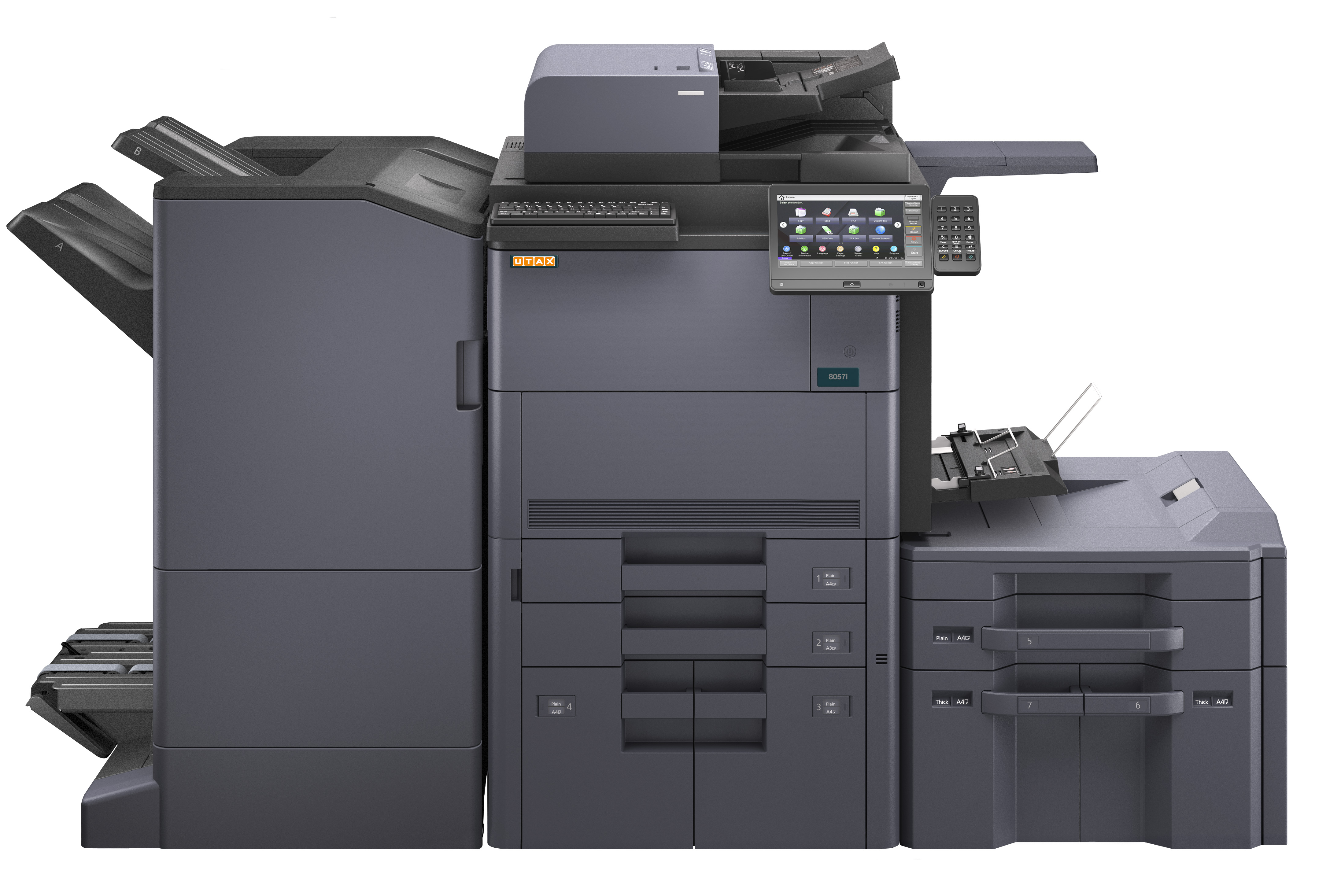

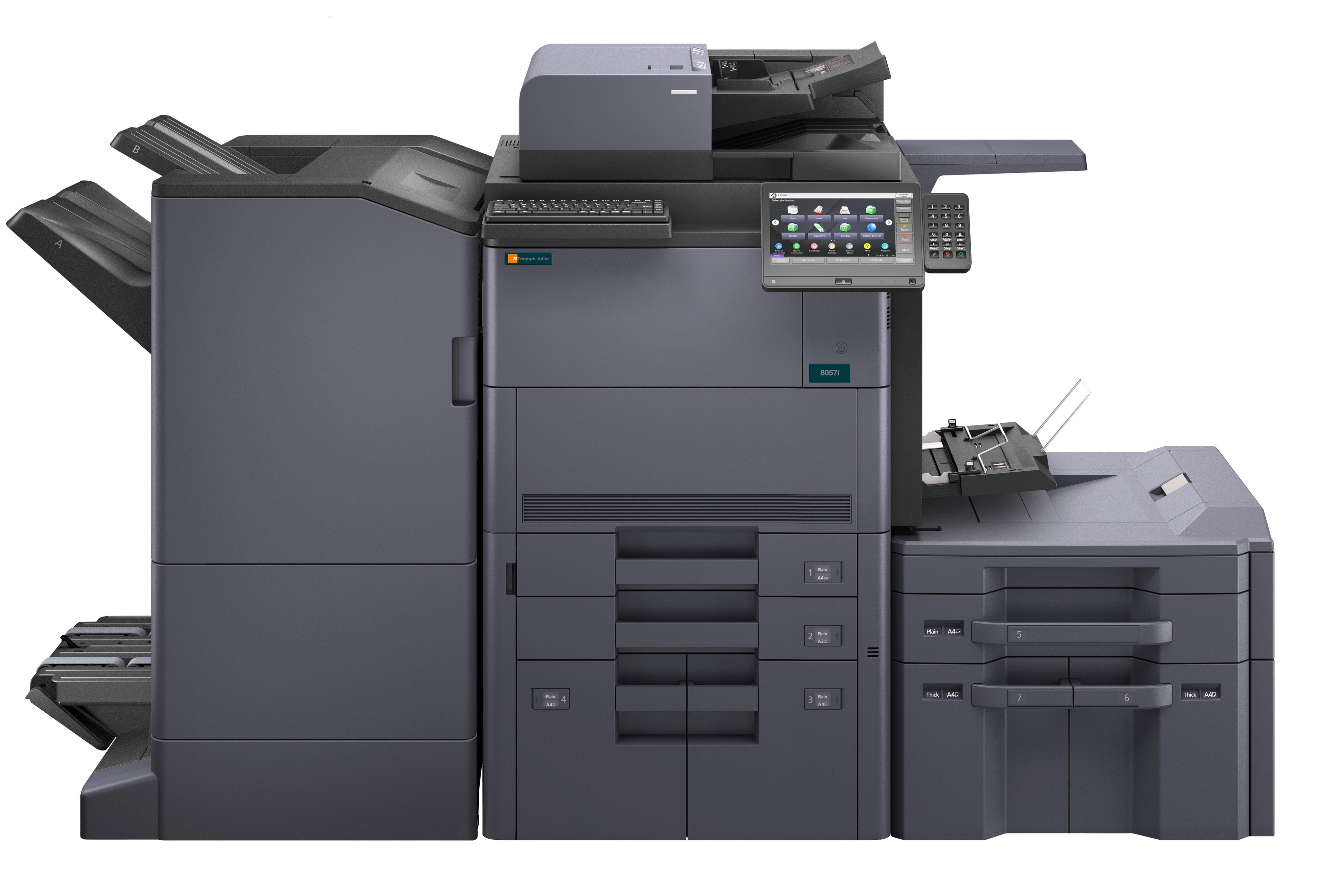

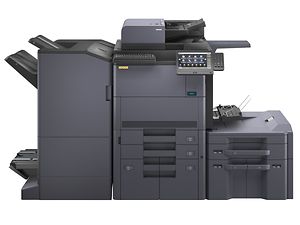

8057i Image

General

  • TypeConsole Unit
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser b/w
  • Original formatmax A3 from platen glass
  • Original feederDual scanner with ultrasonic sensor for multi-feed detection (A6R-A3, capacity: 270 sheet A4, paper weight 35-220 g/m² [DIN A5R-DIN A3])
  • Print speed (A4, Simplex) B/W80 b/w-pages/min.
  • Print speed (A3, Simplex) B/W40 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W80 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W40 b/w-pages/min.
  • 1st page (printing, b/w)4.1 seconds
  • 1st page (copying, b/w)3.7 seconds
  • Warm-up time30 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
  • Paper feed (1st cassette types)A5R-A3+ [max 305 x 457 mm]
  • Paper feed (2nd cassette types)A5R-A3+ [max 305 x 457 mm]
  • Paper feed (Multi-Bypass amount)1 x 500 sheet
  • Paper feed (Multi-Bypass types)A6R-A3+, Banner [305 x 1,219 mm]
  • Paper feed (Large Capacity Cassette amount)2 x 1,500 sheet
  • Paper feed (Large Capacity Cassette 1 types)A4
  • Paper feed (Large Capacity Cassette 1 types)A4
  • Paper feed (print-only)A3+
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)256 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)300 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)256 g/m²
  • Paper output250 sheet A4 (lower tray), 100 sheet A4 (lower tray), with Copy tray type D
  • System memory (RAM)4.5 GB
  • System memory (SSD)8 GB
  • System memory (HDD)320 GB
  • Continuous copying (min)1
  • Continuous copying (max)9999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, trusted platform modul (TPM), secure boot and run time integrity check, etc.

Dimensions / Weight

  • Dimensions (height)1234 mm
  • Dimensions (width)750 mm
  • Dimensions (depth)822 mm
  • Weight150 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)2400 W
  • Power consumption (busy)1170 W
  • Power consumption (standby)110 W
  • Power consumption (sleep)0.7 W
  • Power consumption (TEC)1.44 kwh/week
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A3+
  • Print resolution (max)1,200 x 1,200 dpi
  • ProcessorFreescale QorIQ T1024 (Dual Core) 1.4 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, NFC
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • EmulationsPCL6, KPDL 3 (PostScript 3 compatible), XPS, PDF, PRESCRIBE Ile
  • FunctionsUSB direct printing, PDF/XPS direct printing, Ipsec, SNMPv3, printing of e-mails, private printing, barcode printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A3
  • Scan speed (Feeder 1, simplex, colour)120 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)120 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)220 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)220 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

Fax system

  • TypeFaxsystem 12
  • CompatibilitySuper G3
  • Original formatmax A3
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi
  • Fax memory170 MB
  • Abbreviated dial2000 numbers
  • One touch dial1000 numbers
  • Group dial500 numbers
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception

Options

  • FinisherDF-7110 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), DF-7130 (capacity: 4,000 sheet A4, stapling max 100 sheet A4), PH-7C hole punch unit for DF-7110/7130, BF-730 brochure module for DF-7110 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), BF-9100 brochure module for DF-7130 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max 5 sheet A4), MT- 730 (B) Multi Tray für DF-7110
  • Paper feedPF-730 (B) (2 x 500 sheet universal cassettes [A5R-A3+]), PF-740 (B) (2 x 1,500 sheet large capacity cassette [A4]), PF-7130 (500 sheet multi-purpose cassette [A5R-A3+], required if PF-730 (B)/PF-740 (B) is installed), PF-7120 (3,000 sheet large capacity tray [A4], side deck)
  • Other optionsInternet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card, IB-35 WLAN card, NK-7120 Numeric Keyboard (10 keys), Copy tray type D

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. optional↩
  5. for copy, print, scan, fax↩
  6. optional↩
