2256

Dieses kompakte DIN A3-Multifunktionssystem kopiert, druckt über GDI und scannt in Farbe und bietet damit eine vielseitige Funktionalität für kleinere Teams in der Büroumgebung.

Find a Retailer

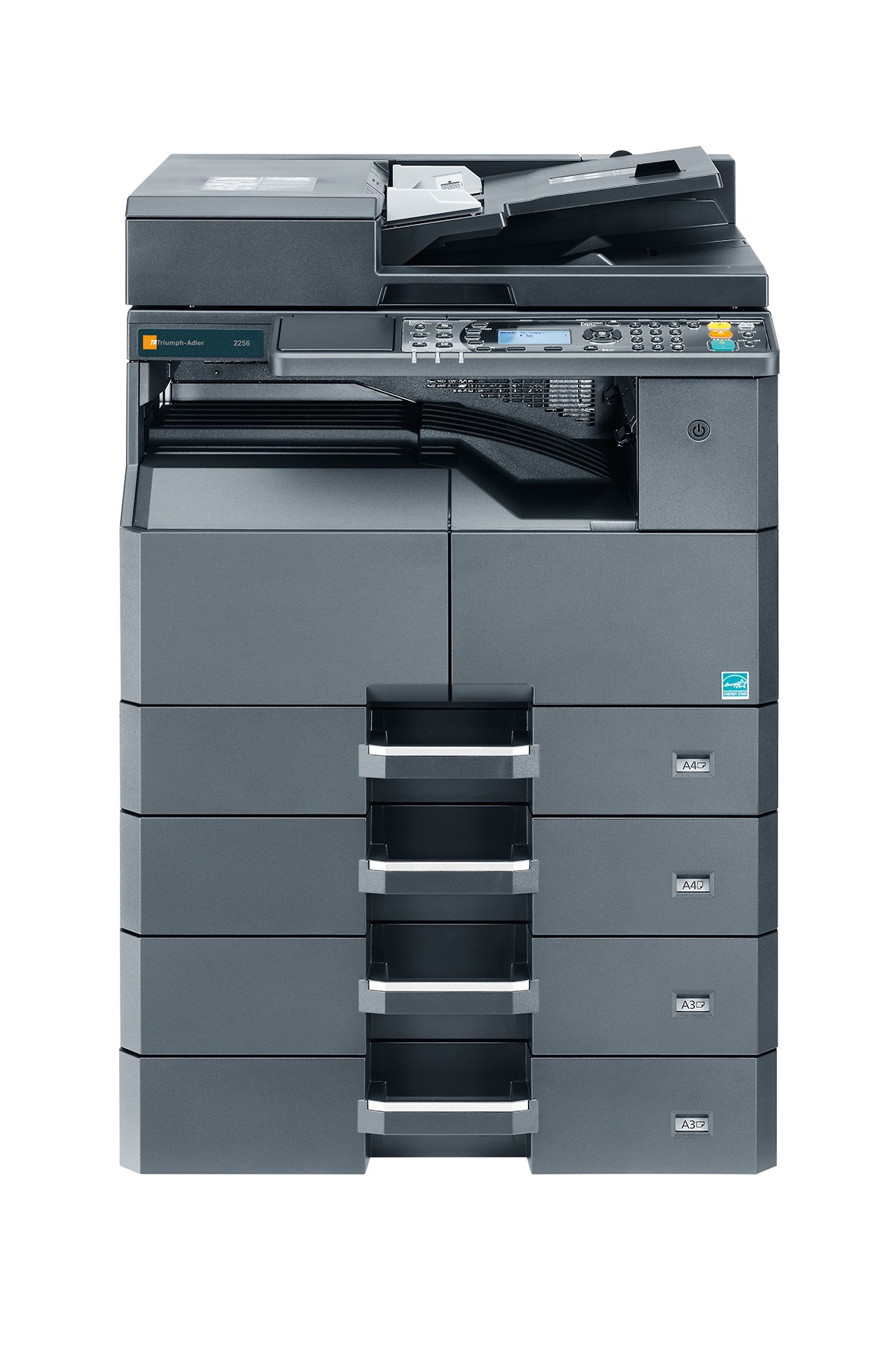

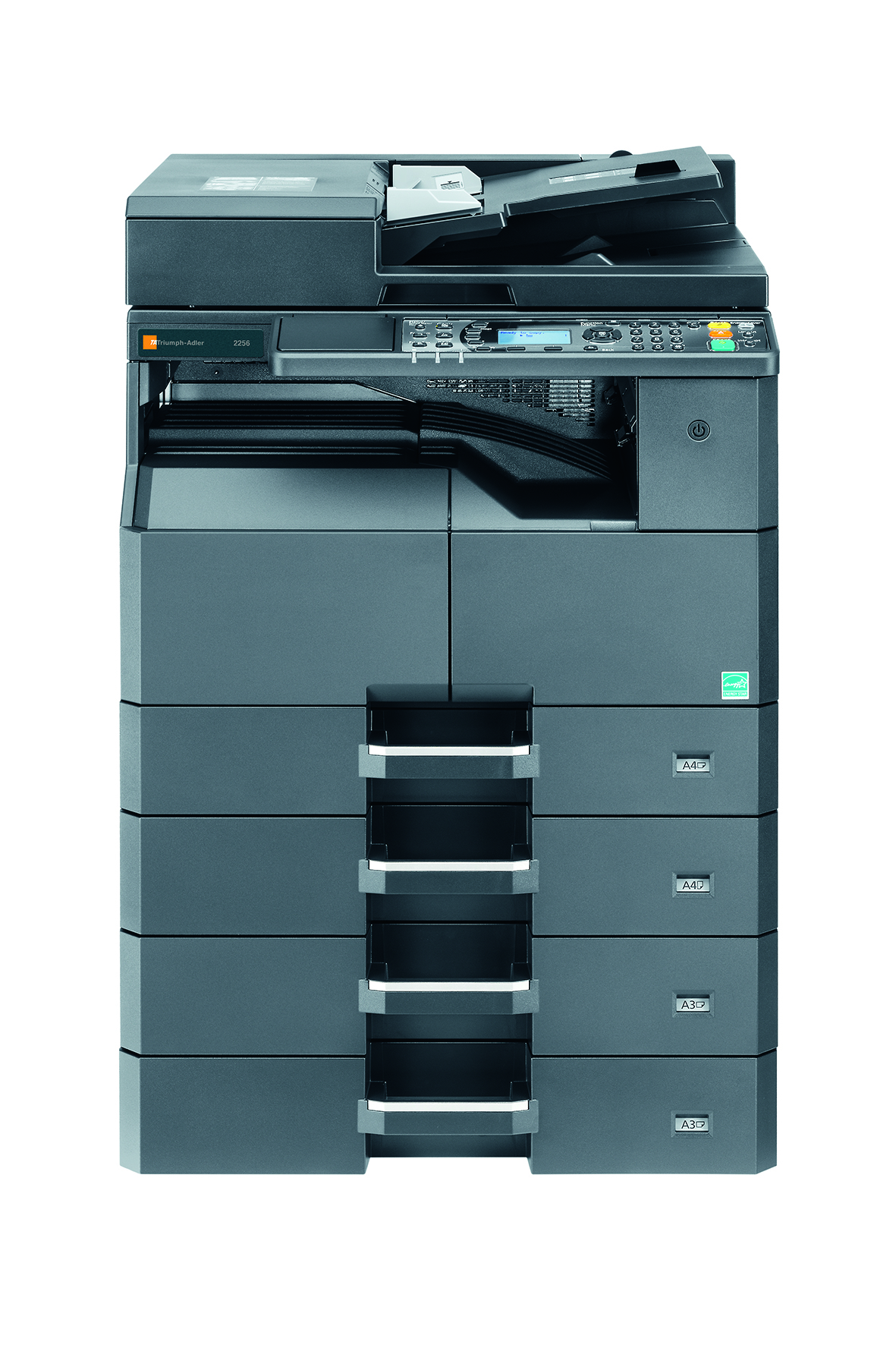

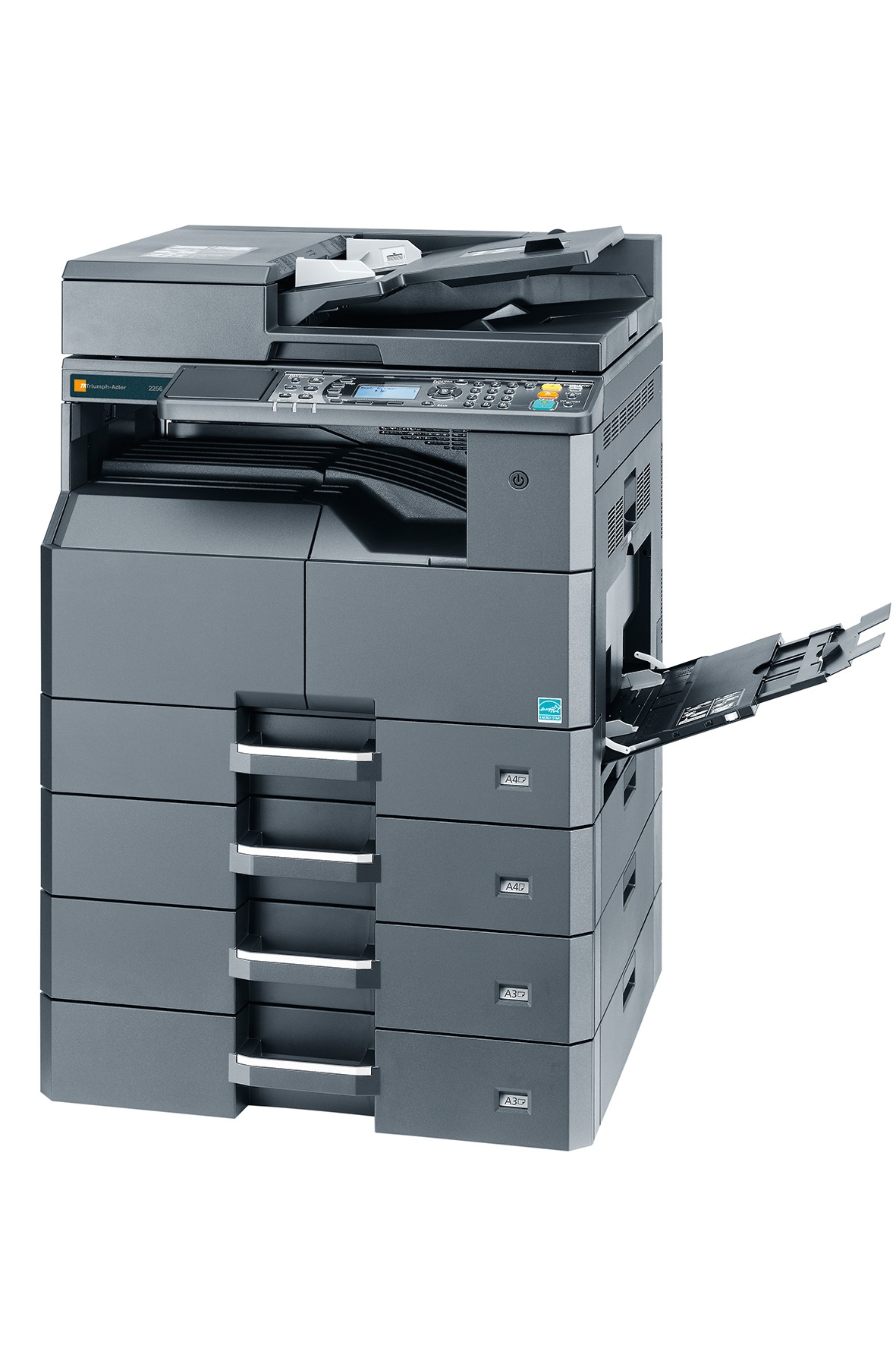

2256 Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser b/w
  • Original formatmax A3 from platen glass
  • Print speed (A4, Simplex) B/W22 b/w-pages/min.
  • Print speed (A3, Simplex) B/W10 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W22 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W10 b/w-pages/min.
  • 1st page (printing, b/w)5.7 seconds
  • 1st page (copying, b/w)5.7 seconds
  • Warm-up time18.8 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 300 sheet
  • Paper feed (1st cassette types)A5R-A3
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A3
  • Paper weights (Universal cassette min)64 g/m²
  • Paper weights (Universal cassette max)105 g/m²
  • Paper weights (Multi-Bypass min)45 g/m²
  • Paper weights (Multi-Bypass max)160 g/m²
  • Paper weights (Duplex min)64 g/m²
  • Paper weights (Duplex max)105 g/m²
  • Paper output250 sheet A4
  • System memory (RAM)0.256 GB
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsLCD with 5 lines, 30 management codes, 30 print boxes, colour scanning, etc.

Dimensions / Weight

  • Dimensions (height)485 mm
  • Dimensions (width)565 mm
  • Dimensions (depth)527 mm
  • Weight26 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1864 W
  • Power consumption (busy)415 W
  • Power consumption (standby)76 W
  • Power consumption (sleep)1.54 W
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A3
  • Print resolution (max)600 x 600 dpi
  • ProcessorARM v5 base core equivalent, 500 MHz
  • InterfacesUSB 2.0
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
  • EmulationsGDI

Scanning system

  • Scan typeScanner colour and b/w
  • Scan formatmax A3
  • Scan speed (Feeder 1, simplex, colour)14 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)22 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi (only b/w), 600 dpi (only b/w)
  • Scan modePhoto, text, photo/text
  • File typesTIFF, PDF, JPG
  • InterfacesUSB 2.0
  • Operating systemsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
  • FunctionsTWAIN-Scan (via USB, Quick Scan Utility

Fax system

  • Typeoptional Fax System (X)
  • CompatibilitySuper G3
  • Original formatmax A3
  • Modem speed33.6 kbps
  • Transmission speed4 seconds or less using MMR
  • Compression methodMMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), 600 x 600 dpi
  • Abbreviated dial120 numbers
  • One touch dial32 numbers
  • Group dial20 numbers

Options

  • Original feederDP-480 document processor with automatic reverse function (A6R-A4, capacity: 50 sheet A4, paper weight 45-120 g/m²)
  • Original platen coverPlaten cover type H (if document processor is not installed)
  • Paper feedmax 3 x PF-480 (300 sheet universal cassettes [A5R-A3])
  • Other optionsDU-480 endless duplex unit ([A5R-A3], paper weights 64-105 g/m2), IB-33 Gigabit Ethernet card, cabinet no. 68 (high), cabinet no. 69 (low)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
